China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X

    Buy cheap China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X from wholesalers

    Buy cheap China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X from wholesalers
    • Buy cheap China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X from wholesalers
    • Buy cheap China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X from wholesalers
    • Buy cheap China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X from wholesalers
    • Buy cheap China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X from wholesalers
    • Buy cheap China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X from wholesalers

    China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X

    Ask Lasest Price
    Brand Name : SuperbIndustry/OEM
    Certification : IS09001:2008 ISO/TS 16949
    Model Number : SI3-82-261 SPICER#3-82-261
    Delivery Time : 45days or so
    Payment Terms : T/T L/C
    Supply Ability : 30000pcs/Month
    • Product Details
    • Company Profile

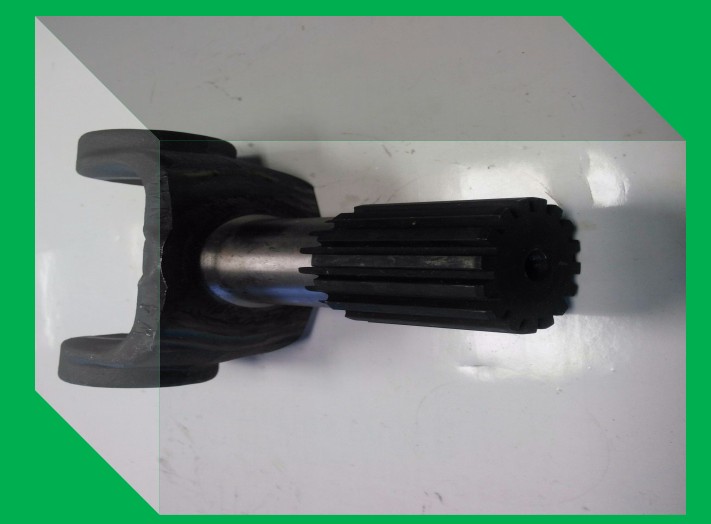

    China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X

    China Quality Driveshaft Yoke Shaft Spicer 3-82-261 1410 Series U-Joint Kit 5-160X 5-1410X

    1.Item specs:

    Condition:NewBrand:SuperbIndustry
    Surface Finish:Heat treatment ,Rust ProtectedManufacturer Part No.:SI3-82-261
    Spline Major Diameter/Count:
    1.750''/16
    OE#/SPICER#3-82-261
    Series :1410Joint Width:E=4.178''
    • Length of Spline:
    L=1.438''Manufacture method:Forging or casting machining
    Joint Bearing Diameter :D=1.188''Width Across Ears :4.438''
    Centerline to End:K=44.547''End of Spline to Radius:R=2.672''
    Material:Steel, Steel 45#/40Cr#, 60#, As per customers
    Place of Origin:

    China(mainland)

    Warranty:Two yearsJoint Angle :0.000

    2.Packaging & Deliver


    Packaging Details:PVC bag + Plywood box ,or as per customer request

    Delivery Detail:30 - 45 days for fabrication


    3.Advantage:

    a. High intensity and rigidity, corrosion and aging resistance, stable function, safety and long durability

    b. Advanced equipments, professional &experienced designers

    c. Fine quality with competitive price and timely delivery

    d. Suit for various kinds of vehicles use

    e. Perfect after - sale service system

    5.See the Following Other Part No. For Your Reference:

    A.WELD YOKE SERIES:

    1-Weld Yoke 2-U JOINT 3-CENTER /H Yoke 4-Flange Yoke

    Believe choosing us is the best choice!
